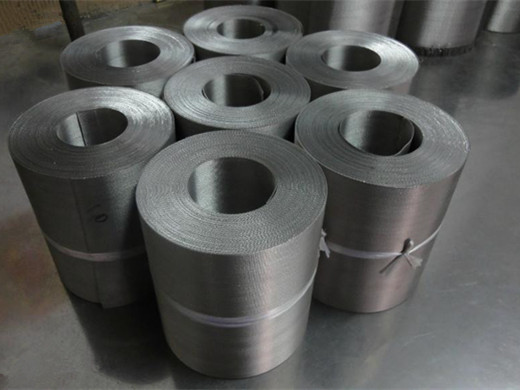

Reverse Dutch Woven Cloth


The difference of reverse dutch weaving compared with standard dutch weave lies in the thicker warp wires and less weft wires. Reverse dutch woven cloth offers finer filtration and finds popular application in petroleum,chemical,food,pharmacy and more other fields.

Mesh Wire diameter(μm) Micron Retention (μm) Porosity
theor.
(%)
Weight (kg/m2) Cloth Thickness (mm)
Warp Weft nominal absolute
720x140-150 35 110 15 16-20 52 0.65-0.70 0.15-0.18
630x125-130 42 125 17 22- 26 53 0.75-0.85 0.20-0.22
600x100-105 42 140 25 34- 38 57 0.75-0.80 0.22-0.23
280x60-70 90 200 40 54- 60 56 1.34-1.55 0.38-0.40
175x40-50 150 300 60 65- 72 55 2.1-2.40 0.57-0.60
130x30-35 200 380 80 95-105 57 2.7-3.10 0.77-0.80
175x 37     85 100-106 54 2.10 0.57
170x 40     90 106-118 55 2.10 0.57
260x 40     125 112-125 62 2.25 0.62
84x 14       450-530 62 3.50 1.15
