Sintered Mesh

Sintered mesh is a rigid structured composite consisting of multi-layers of woven wire mesh, manufactured from a special lamination design and undergoing a combination of processes such as rolling and vacuum sintering.

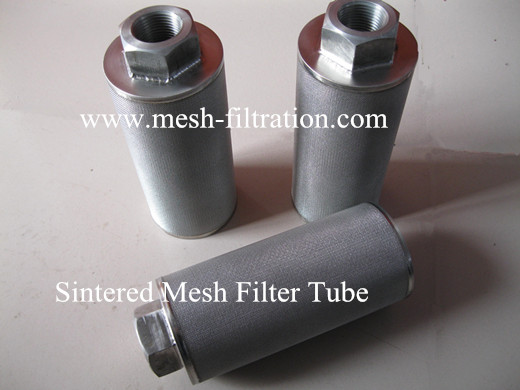

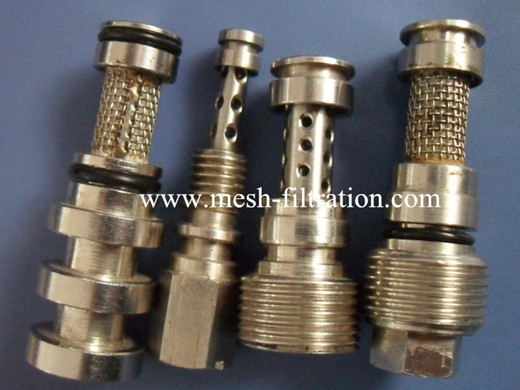

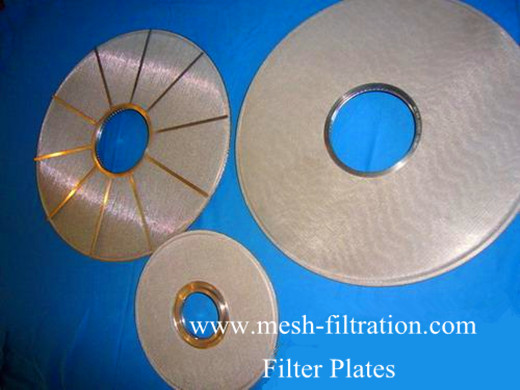

5-Layers sintered stainless steel mesh is our standard sintered mesh structure. Its filtration rating ranging from 5 micron to 300 microns. It can then be cut and fabricated into various discs, tubes, filter cartridges, and flat panels.

Feature: Sintered mesh can maintain the simple structure and even pore distribution characteristics of ordinary woven wire mesh. At the same time,possess high strength and good integrity,and also can maintain a stable and rigid mesh shape.the sintered mesh porous material has good permeability and excellent regeneration ability.

Material:AISI304;AISI304L; AISI316;AISI316L
Special Alloy Steel Hastelloy ,Monel ,Inconel & Titanium are acceptable base on customer's requirement

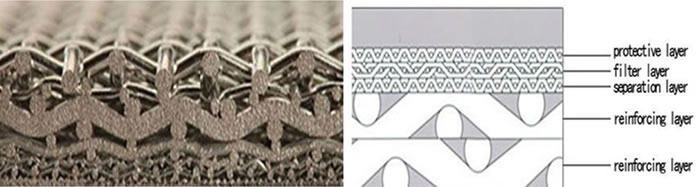

Nominal Filtration Fineness (μm)	Protective Layer	Control Layer	Separation Layer	Reinforcing Layer	Reinforcing Layer	Thickness (mm)	Air Permeability (L/min/cm2)	Bubble Pressure (mm H2O)	Weight (kg/m2)	Porosity
1	200	400 x 3000	200	12 x 64	64 X 12	1.7	1.81	360 - 360	5 Layers (8.4) 6 Layers (14.4)	Approx 40%
2	100	325 x 2300	100	12 x 64	64 X 12	1.7	2.35	300-590
5	100	200 x 1400	100	12 x 64	64 X 12	1.7	2.42	260-550
10	100	165 x 1400	100	12 x 64	64 X 12	1.7	3.00	220-500
15	100	165 x 1200	100	12 x 64	64 X 12	1.7	3.41	200-480
20	100	165 x 800	100	12 x 64	64 X 12	1.7	4.50	170-450
25	100	165 x 600	100	12 x 64	64 X 12	1.7	6.12	150-410
30	100	400	100	12 x 64	64 X 12	1.7	6.86	120-390
40	100	325	100	12 x 64	64 X 12	1.7	7.10	100-350
50	100	250	100	12 x 64	64 X 12	1.7	8.41	90-300
75	100	200	100	12 x 64	64 X 12	1.7	8.70	80-250
100	100	150	100	12 x 64	64 X 12	1.7	9.10	70-190
150	50+100+50+30+30+100+50					2.0	25.00	50-150
200	40+80+40+20+40+80+40					2.0	26.00
