Knitted Wire Mesh

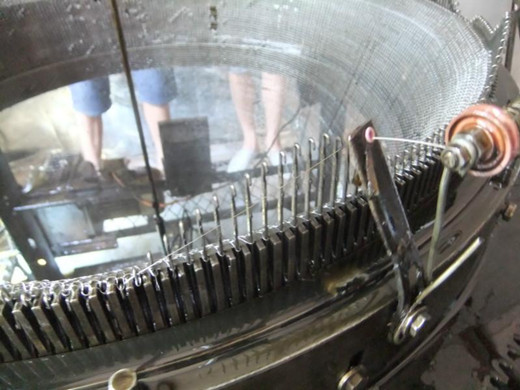

Knitted mesh is made by knitting machine similar to jumpers and scarves machine. The final knitted mesh is in the structure of inter-connecting loops, and it similar to a long knit sock. We can produce multi-filament, co-knit and multi-strand knitted wire meshes. Our knit wire diameter is commonly range from 0.11mm to 0.35mm. But for special applications, knit wire as small as 0.03mm or as large as 0.8mm in diameter is available.
Material:stainless steel, galvanized steel, Aluminium, copper, Nickel and copper nickel alloys.
Application:Knitted mesh mainly serve the following industries: cleaning of the filter, plastic and die, mufflers, shock absorber mounts, soundproof generator pad, air conditioning humidifier pad, to capture the flame of the wireless signal shielding, sealing in harsh environments.

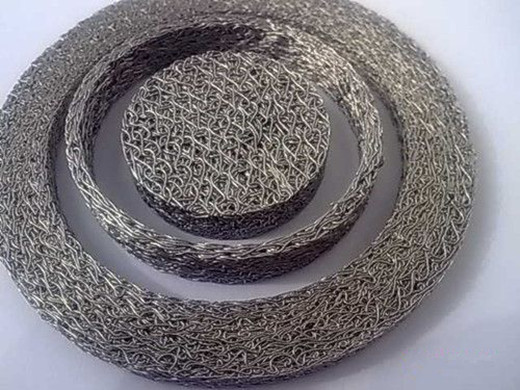

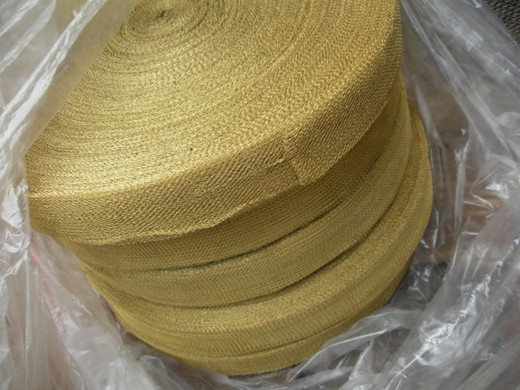

Our products include knitted mesh fabric, knitted mesh gaskets, knitted mesh filter, knitted mesh engine breathers, knitted wire mufflers, knitted wire demister pad, knitted mesh mist eliminator, and knitted wire mesh shielding.We can also made knitted mesh into all shapes, such as knitted wire mesh tapes, knitted mesh rolls and ginning knitted mesh. We can compress our products into various forms. For example: cylindrical, round disc, ring, oval, rectangle, bottle-shaped, as well as various other special shapes.
| Specification List of Filter Mesh | |||||
| Model | Specification | Wire Diameter | Materials | Area/Weight | Technical Notes |
| Standard | 40-100 Model 60-150 Model 140-40 Model 40-100 Model 40-100 Model 40-100 Model 40-100 Model | 0.1x0.4 0.1x0.4 0.1x0.4 0.27 0.1x0.4 0.25 0.2 | stainless steel wire stainless steel wire stainless steel wire gal. iron wire copper wire polyamide fiber PVC fiber | 1/0.5 " " 1/0.7
| 1, For 40-100 model: 40 holes in 100% width 2, Metal filter mesh can be processed into weaves type |
| High Efficience Model | 60-100 Model 80-100 Model 90-150 Model 200-400 Model 60-100 Model 80-100 Model | ¢.012 0.1x0.3 0.1x0.3 0.1x0.3 0.1x0.3 ¢0.1-0.15 0.1-0.15 | stainless steel wire stainless steel wire stainless steel wire stainless steel wire polyamide fiber polyamide fiber | 1/0.6 1/0.6 1/0.6 1/0.6
| |
| High Permeability Model | 30-100 Model 30-150 Model 70-400 Model | 0.1x0.4 0.1x0.4 0.1x0.4 | stainless steel wire stainless steel wire stainless steel wire stainless steel wire | 1/0.4 1/0.4 1/0.4 | |
